Vertical heat recovery fresh air fan

Smart Future to Clean Life

● Multiple installation methods, can be hidden in the cabinet, avoiding complex pipelines

● Can be installed on the ground or hung, suitable for various sizes of room types

● 24-hour intelligent continuous ventilation throughout the house

● Remove formaldehyde and haze to ensure indoor air quality


● Simple and elegant intelligent control panel with built-in WIFI connection module, making life more convenient

● Regular reminder to replace the filter to ensure clean air

● Primary filtration

It can filter large particles, leaves, hair, mosquitoes, etc. and is washable.

● High efficiency filtration

The one-time filtration efficiency of PM2.5 is over 99%.


	ERV250DCP2L1	ERV400DCP2LB1	ERV600DCP2LB1
Power(W)	87	150	265
Air volume (m³/h)	250	400	600
Residual pressure outside the machine (Pa)	80	80	100
Heat recovery efficiency%	60	60	60
Noise dB(A)	38	39	40
Machine filtration efficiency%	97	95	95

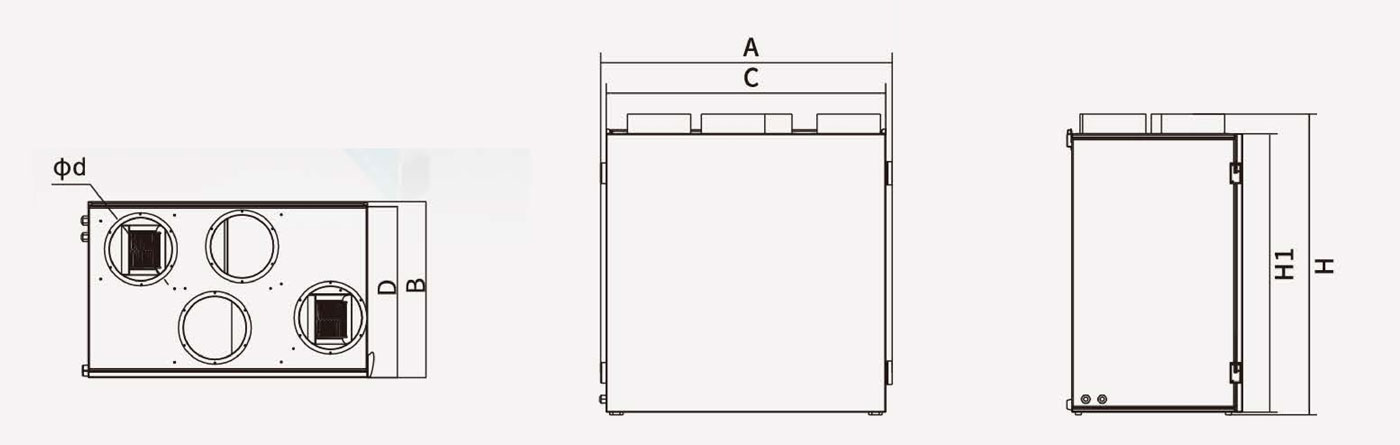

Dimensions (mm)	736x437x669	874x455x820	897x540x924
Air outlet size Φ	150	160	200
Weight(kg)	41	75	92
Applicable area(m²)	80-120	120-190	190-260
