Purification heat recovery fresh air fan-“Zhenxiang”series

Side and bottom maintenance coexist, making maintenance more convenient

Functional advantages

●  Hexagonal graphene heat recovery core with larger volume and higher heat recovery efficiency

●  Pre filter element to protect the heat recovery core body

●  DC brushless motor, quieter

●  Primary steel mesh reduces maintenance costs

●  Stainless steel flange mouth, exquisite details

●  Bypass function, more comfortable air intake in spring and autumn seasons

●  Higher air volume, providing upward performance space

●  Enhanced sound insulation, thickened sheet metal, improved structural strength, high damping, low vibration

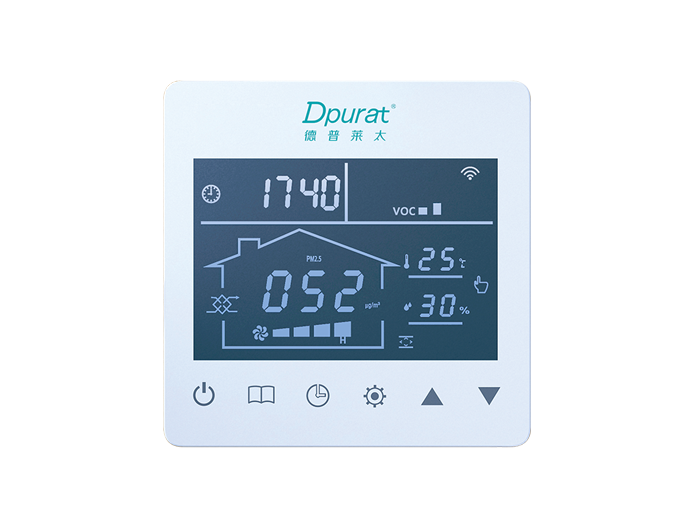

Intelligent touch, exquisite and beautiful

● LCD digital display intelligent controller, easily enriching and refreshing the home with oxygen

●  LCD switch, automatic/manual mode, with timed power on/off function

●  Built in WIFI module, can be remotely controlled through mobile APP

●  485 port, easy to connect to smart homes

●  No operation, backlight automatically dims screen

●  Filter replacement reminder, more user-friendly



Multiple filtering is worry free and reassuring

●  Primary filter:

Upgraded stainless steel metal filter, capable of filtering large particles, leaves, hair, mosquitoes, etc., can be repeatedly washed with water, and has low maintenance costs.

●  Medium efficiency filter:

The return air adopts a medium efficiency filter to capture particles, dust, and various suspended solids of 1-5 μ m in the air. The front and back use medium efficiency filters to create a high-quality indoor environment, protect the heat recovery core, and the core is maintenance free.

●  Efficient filter:

The one-time filtration efficiency of PM2.5 filter is over 99.9%.

The high-efficiency filter adopts imported materials to filter small particles ≥ 0.3 μ m, such as tobacco, smoke, small particle aerosols, etc.



Host size parameters


Model

A

B

C

D

E

F

H

h1

Φd

ERV3OODCP2STB1

970

772

1084

784

1034

714

260

73

150

ERV4OODCP2STB

1040

772

1154

784

1104

714

270

73

150

ERV6OODCP2STB

1080

1060

1222

1072

1144

1002

291

70

200


产品参数

ERV300DCP2STB1

ERV400DCP2STB1

ERV600DCP2STB1

Power:120W

Airflow:300m²/h

External residual pressure: 110Pa

Heat recovery efficiency:81%

Noise:36dB (A)

Filtration efficiency:95%

Dimensions:1084x860x260mm

Wind outlet size: Φ150mm

Weight:58kg

Applicable area:100-130m²

Power:150W

Airflow:400m²/h

External residual pressure:120Pa

Heat recovery efficiency:78%

Noise:37dB(A)

Filtration efficiency:95%

Dimensions:1182x863x271mm

Wind outlet size:Φ 200mm

Weight:72kg

Applicable area:130-190m²

Power:220W

Airflow:600 m²/h

External residual pressure:130Pa

Heat recovery efficiency:75%

Noise:40dB(A)

Filtration efficiency:95%

Dimensions:1222x1072x291mm

Wind outlet size:Φ 200mm

Weight:86kg

Applicable area:190-260m²
